Taking open-tray implant impressions using the WindowTray Implant Impression Tray from Paradise Dental Technologies

Pamela Maragliano-Muniz, DMD, reviews the WindowTray Implant Impression Tray from Paradise Dental Technologies and shares her technique for using it to take implant impressions.

Content Dam Diq Online Articles 2016 07 Pmm Pdt Implantimp Diqthumb
Pamela Maragliano-Muniz, DMD, reviews the WindowTray Implant Impression Tray from Paradise Dental Technologies and shares her technique for using it to take implant impressions.

We all know that there are no shades of gray when it comes to the fit of implant-supported restorations—they either fit or they don’t. This makes the accuracy of our impressions especially important when we are fabricating implant-supported restorations. When implant-supported restorations do not fit, the results are increased chair time and appointments, reduced productivity, and increased frustration for both dentists and patients (figure 1).


Figure 1:
Note the incomplete seating/misfit of the restoration on the custom abutments. There should not be a detectable margin between the custom abutment and prosthesis when evaluating the fit of these restorations radiographically. This improper fit is most likely the result of inaccuracies during the final impression.

When making final impressions for implant-supported restorations, we have many decisions to make. We must consider which impression technique (open-tray versus closed-tray or transfer versus pick-up), which type of impression tray (stock versus custom), and which type of material to use. There are patient-related factors that we must consider, including whether there is enough space during maximum opening to use the open-tray technique. Additionally, we may consider modifying our technique or materials if the patient has a hyperactive gag reflex.

When considering the impression tray to use, stock trays suffice when making one to a few units. (1) When making impressions for a full-arch case, custom trays are more accurate because they are rigid and provide support for the impression material. (2,3) When impression material is unsupported, it can be displaced, which can result in inaccuracies. Metal impression trays offer greater rigidity and support for dental impression materials when compared to plastic stock trays. (4)

Paradise Dental Technologies (PDT) has created a metal stock impression tray with removable sections in the occlusal part of the tray to facilitate open-tray (or pick-up) implant impressions (figures 2 and 3). This tray is versatile and can be used for single or multiple implant impressions. If all of the sections are secured, this impression tray can be used for any impression. The impression tray is also autoclavable and eliminates the need to dispose of plastic impression trays for implant impressions—which is great for “green” dental practices!


Figures 2 and 3:
The occlusal aspect of PDT's WindowTray Implant Impression Tray has nine removable sections to facilitate impression making for implants that are replacing any tooth position. These segments are numbered to facilitate quick repositioning of the removable pieces.

Technique

1. Place your open-tray impression coping on the implant you are planning to impress. Confirm its complete seating with a radiograph (figure 4). There should not be a space at the junction of the implant and impression coping.


Figure 4:
Radiographs are used to confirm the complete seating of the impression coping on the implant. This implant system is by Straumann. Note that there is not a detectable space between the impression coping and the implant. This implant system also has a built-in horizontal displacement of implant abutments (and impression copings) when compared to the implant. This is an example of “platform switching.” This situation, where the abutment is narrower than the head of the implant, supports better tissue adhesion and reduced bone loss. Additionally, this impression coping was customized with visible light-cure (VLC) composite to accurately duplicate the tissue support and contour of the provisional crown, so this information could be translated into the final prosthesis.

2. Remove the corresponding section from the impression tray with the driver that was supplied with the tray. In this case, section No. 5 was removed (figure 5).


Figure 5:
Section No. 5 was removed in this case to make an impression of an implant in site No. 8.

3. Try in the impression tray over the open-tray implant. Make sure that there is adequate space around the impression coping. If the impression coping is located between two sections, remove both (figures 6 and 7).


Figures 6 and 7:

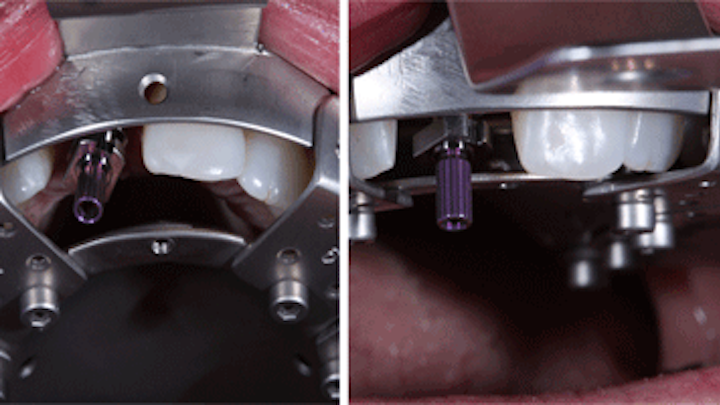

Try in the impression tray. Make sure there is adequate space circumferentially around the impression coping, as minor variations in tray placement take place between try-in and the actual impression. Make sure that the impression coping extends beyond the impression tray. If the impression coping does not extend beyond the tray, the tray may be modified with wax. The impression coping must be accessible for removal of the open-tray (or pick-up) impression.

4. There is no need to place adhesive into this impression tray. Undercuts are built into the tray, and the impression material will be secured to the tray through mechanical retention (figure 8).


Figure 8:
This is the intaglio view of the WindowTray, which has built-in undercuts, eliminating the need for adhesive placement.

5. Fill the impression tray with heavy-viscosity impression material and syringe light-viscosity impression material over the impression coping. Seat the tray. Allow the impression material to fully set, unscrew the impression coping, and retrieve your impression with your open-tray impression coping from the patient’s mouth (figures 9 and 10).


Figure 9:
For all open-tray (pick-up) impressions, I use a thin layer of baseplate wax over the open portion of the impression tray. This technique minimizes extrusion of excess material (and therefore mess) and facilitates easy access to the impression coping screw.


Figure 10:
This final impression was made with Exa’lence (GC America), a vinyl polyether siloxane (VPS) material, which is a hybrid of polyvinyl siloxane and polyether impression materials. It has the handling, taste, and detail replication of a PVS, coupled with the elastic recovery, high tear strength, and hydrophilicity of a polyether impression material.

Early in my career, I had to section an impression tray to remove an impression! Fortunately, it was a plastic tray, so although it was messy and cumbersome to remove, it was easy enough to section. If you have ever had the misfortune of “locking” heavy-body impression material in an undercut (under a bridge, for example), this tray would be helpful in that kind of scenario because you can remove the sections to dislodge the impression material. Overall, this impression tray is easy to use and very versatile.
